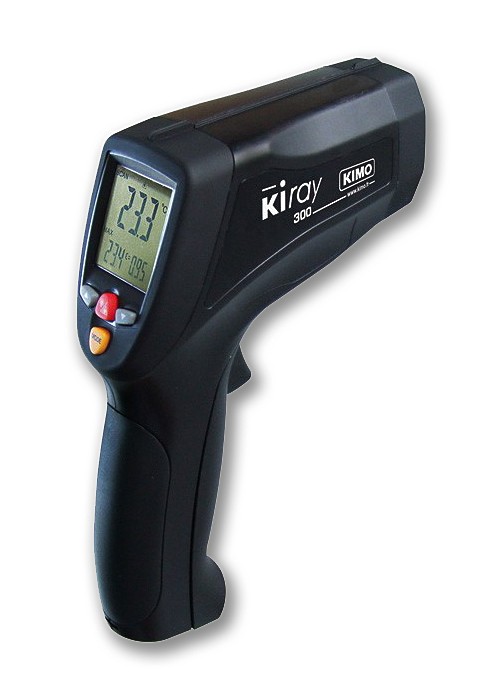

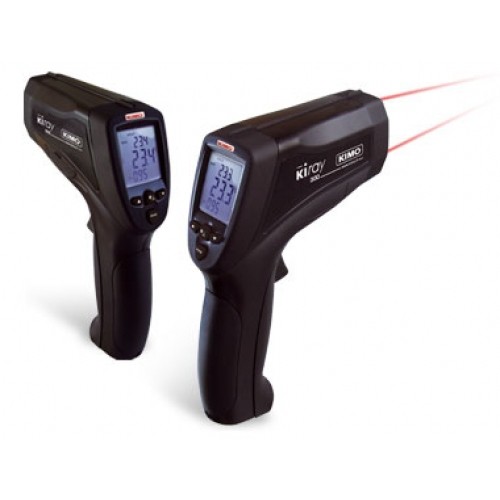

Infrared thermometer atau Gun thermometer Kirai 300 Kimo Adalah alat ukur suhu dengan menggunakan sinar infrared sebagai sensor deteksi temperatur,
Alat ini sangat cocok di gunakan untuk mengukur suhu kabel di panel listrik, lampu, oven, mesin-mesin, incubator dan lain-lain..
| Spesifikasi : | |||
| ▪ | Respon spektral | : | 8 - 14 μm |
| ▪ | optik | : | DS: 50: 1 (50,8 mm pada 2540 mm) |
| ▪ | Kisaran suhu | : | -50 sampai + 1850 ° C |
| ▪ | Ketepatan* | : | -50 sampai + 20 ° C: ± 3 ° C |
| : | + 20 sampai + 500 ° C: ± 1% ± 1 ° C | ||
| : | + 500 sampai + 1000 ° C: ± 1,5% | ||
| : | + 1000 sampai + 1850 ° C: ± 2% | ||
| ▪ | Pengulangan inframerah | : | -50 sampai + 20 ° C: ± 1,5 ° C |
| : | + 20 sampai + 1000 ° C: ± 0,5% atau ± 0,5 ° C | ||
| : | + 1000 sampai + 1850 ° C: ± 1% | ||
| ▪ | Resolusi tampilan | : | 0,1 ° C |
| ▪ | Waktu merespon | : | 150 ms |
| ▪ | Emisivitas | : | Adjustable from 0.10 to 1.0 ( pre-set at 0.95) |
| ▪ | Over range indication | : | Display indication : « ---- » |
| ▪ | Dual laser sighting | : | Wavelength : from 630 nm to 670 nm |
| : | Output < 1mW, Class 2 ( II) Positive or negative | ||
| ▪ | Temperature indication | : | Automatic ( no indication for a positive temperature) |
| : | ( -) sign for a negative temperature | ||
| ▪ | Display LCD | : | 3 lines, 4 digits with backlighted display |
| ▪ | Auto-extinction | : | Automatic after 7 seconds of inactivity |
| ▪ | High/ low alarm | : | Flashing signal on display and beep signal with adjustable thresholds |
| ▪ | Power supply | : | Alkaline 9V battery |
| ▪ | Autonomy | : | 95 h ( inactive laser and backlight) |
| : | 15 h ( active laser and backlight) | ||
| ▪ | Use temperature | : | From 0 to + 50° C |
| ▪ | Storage temperature | : | -10° C to + 60° C |
| ▪ | Relative humidity | : | 10 to 90% RH in operating mode and lower than 80% RH in storage |
| ▪ | Dimensions | : | 200 x 140 x 50 mm |
| ▪ | Weight | : | 320 g ( included battery) |
| ▪ | Memory | : | 100 nilai suhu |
