Mercury Instruments, Mercury Tracker 3000 IP - Portable Mercury Vapor Analyzer adalah alat ukur untuk menganalisa kadar merkuri di udara, Jual Mercury Tracker Alat ukur kadar merkuri di udara. informasi harga Mercury Tracker 3000 IP dapat menghubungi di email : pauli@sitoho.com atau SMS : 0823 6966 9711

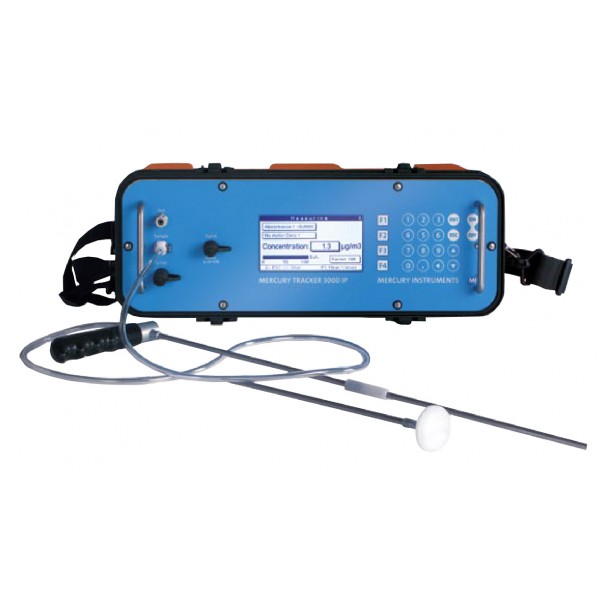

Portable Mercury Vapor Analyzer
Type : Tracker 3000 IP
Product : Mercury Instruments
spesifikasi :
| ▪ | Measurement Principle | : | Atomic Absorption Spectrometry (AAS) |
| ▪ | Wavelength | : | 253,7 nm |
| ▪ | UV source | : | Electrodeless low pressure mercury discharge lamp |
| ▪ | Stabilization | : | Reference detector and thermal control |
| ▪ | Optical cell | : | Fused silica (Suprasil), 230 mm length |
| ▪ | Measuring range | : | 0 ...100μg/m3; 0...1000μg/m3; 0 - 2000μg/m3 |
| : | 0-10 ppb; 0-100 ppb; 0-200 ppb | ||
| ▪ | Sensitivity | : | 0.1 μg/m3 (equivalent 0.0001 mg/m3 or 0.01 ppb) |
| ▪ | Response time | : | 1 sec (no measuring cycles or regenerations required) |
| ▪ | Computation | : | Automatically, of mean values three freely selectable |
| : | averaging intervals | ||
| ▪ | Mercury alarm | : | Optical and acoustical, 3 thresholds programmable |
| ▪ | Status alarm | : | Measuring cell soiled, battery state, UV source exhausted |
| ▪ | Control pad | : | Waterproof membrane keypad |
| ▪ | Measurement display | : | 5.3” graphic display with background illumination |
| ▪ | Signal outputs | : | 4...20 mA analog; serial RS 232, |
| ▪ | Software | : | Included, data transfer to PC, export into EXCEL® format |
| ▪ | Data storage | : | Built-in data logger with non-volatile memory, |
| capacity 15000 readings for analysis storage | |||
| of 4 hours to 173 days at 1 to 999 seconds rate, | |||
| automatic time and date stamp | |||
| ▪ | Pump | : | Membrane pump, approx. 1,5 L / min. |
| ▪ | Batteries | : | Rechargeable NiMH batteries (6 hours capacity) |
| quick swap battery packs as option | |||
| ▪ | Additional power supply | : | 110 ... 240 V/(50/60 Hz) with included power supply; |
| : | external 12 V DC sources like car batteries | ||
| ▪ | Dimensions (with cover) | : | 450 x 195 x 305 mm (17.7” x 7” x 12” W x H x D) |
| ▪ | Weight (with battery) | : | Approximately 5.5 kg (12 lbs) |
| ▪ | Sampling probe | : | 90 cm (35”) length, electropolished stainless steel, |
| with ergonomic plastic grip | |||
| ▪ | Sample filter | : | 1 μm porosity, 45 mm (1.8”) diameter, disposable |
