adalah salah satu jenis pyranometer, alat ukur yang digunakan untuk mengukur radiasi matahari langsung maupun difus

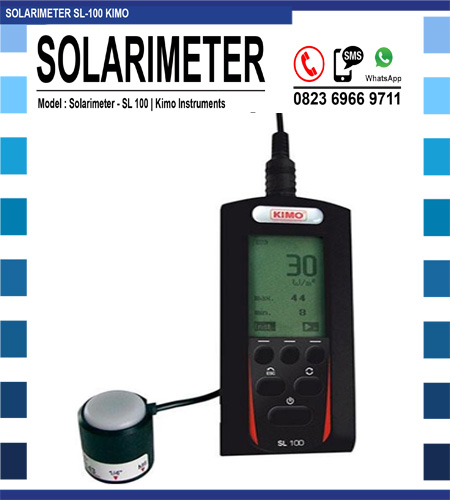

Alat ukur panjang penyinaran matahari atau Solarimeter Kimo SL100. di desain portable dan sangat mudah digunakan.
Untuk imformasi harga / stock Tlpn/SMS/WA : 0823 6966 9711
| Portable Solarimeter | Solarimeter SL-100 Kimo | |||
| Model : SL 100 | |||
| Produk : Kimo (Francis) | |||
| Fungsi : adalah salah satu jenis pyranometer, alat ukur | |||
| yang digunakan untuk mengukur radiasi matahari langsung maupun difus. | |||
| Spesifikasi : | |||
| a. | Instrument | ||
| ▪ | Solar irrigation range | : | 1 W/m2 to 1300 W/m2 |
| ▪ | Energetic exposure range | : | 1 Wh/m2 to 500 kWh/m2 |
| ▪ | Frequency of measurement | : | 2 / s |
| ▪ | Accuracy | : | 5% of measurement |
| ▪ | Calculation frequency (W/m2) | : | 1 / min (average on 60s) |
| ▪ | Capacity (Wh/m2) | : | 3 days – Results saved when instrument is switched off |
| ▪ | Housing dimensions | : | 58 x 120 x 33 mm |
| ▪ | Power supply | : | 3 LR3-AAA batteries |
| b. | Solar cell | ||
| ▪ | Spectral response | : | from 400 to 1100 nm |
| ▪ | Nominal sensitivity | : | 100mv for 1000W/m2 * |
| ▪ | Response in cosine | : | corrected until 80° |
| ▪ | Coefficient in temperature | : | +0,1%/°C |
| ▪ | Effective area | : | 1 cm2 |
| ▪ | Mode | : | photovoltaic |
| ▪ | Material | : | polycristallin silicon |
| ▪ | Front face | : | translucent PMMA |
| ▪ | Tightness | : | Polyurethane resin and housing in PMMA and polyacetol |
| ▪ | Cell weight /dimensions | : | 60g / 30 x 32 mm |
| ▪ | Cable length | : | 1,25 m (can be unplugged) |

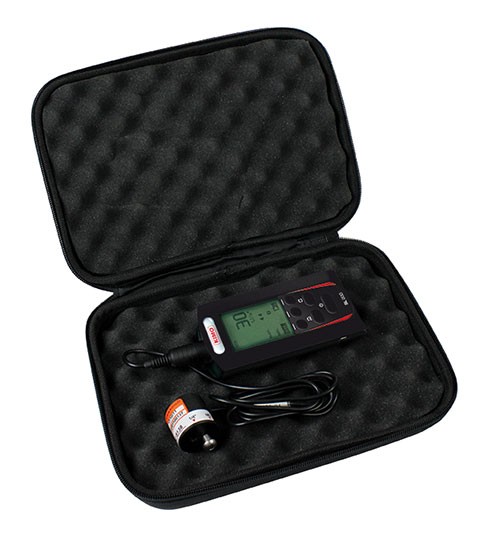

| c. | Complete unit | : | Tripod, Solar cell, |
| : | Manualbook, | ||
| : | Certificate of calibration | ||
