adalah salah satu jenis pyranometer, alat ukur yang digunakan untuk mengukur radiasi matahari langsung maupun difus.
Alat ukur panjang penyinaran matahari atau Solarimeter Kimo SL200 di desain portable dan sangat mudah digunakan, dilengkapi software untuk datalogin.
Untuk imformasi harga / stock Tlpn/SMS/WA : 0823 6966 9711

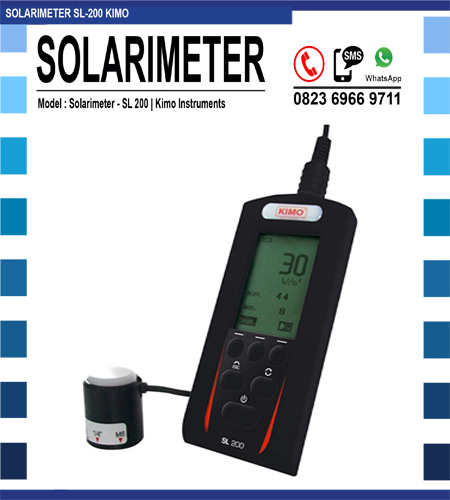

| Portable Solarimeter | Solarimeter SL-200 Kimo | |||
| Model : SL 200 | |||
| Produk : Kimo (Francis) | |||
| Fungsi : adalah salah satu jenis pyranometer, alat ukur penyinaran matahari dan alat ukur ini | |||
| yang digunakan untuk mengukur radiasi matahari langsung maupun difus. | |||
| Spesifikasi : | |||
| a. | Instrument | ||
| ▪ | Solar irrigation range | : | 1 W/m2 to 1300 W/m2 |
| ▪ | Energetic exposure range | : | from 1 Wh/m2 to 500 kWh/m2 |
| ▪ | Frequency of the measure | : | 2 / s |
| ▪ | Accuracy | : | 5% of measurement |
| ▪ | Calculation frequency (W/m2) | : | 1 / min (average on 60 seconds) |
| ▪ | Storage capacity | : | 31 days, 44640 saved recording |
| ▪ | Fast datas download | : | 1000 values/second |
| ▪ | Detection | : | out of range and sensor default |
| ▪ | Package dimensions | : | 58 x 120 x 33 mm |
| ▪ | Power supply : | : | 3 LR3-AAA batteries |
| b. | Solar cell | ||
| ▪ | Spectral response | : | from 400 to 1100 nm |
| ▪ | Nominal sensitivity | : | 100mv for 1000W/m2 * |
| ▪ | Response in cosine | : | corrected until 80° |
| ▪ | Coefficient in temperature | : | +0,1% /°C |
| ▪ | Effective area | : | 1 cm² |
| ▪ | Operating temperature | : | from -30°C to +60°C |
| ▪ | Humidity dependence | : | 100% RH |
| ▪ | Cell dimensions /Weight | : | 30 x 32 mm /60g |
| ▪ | Cable length | : | 1,25 m (can be unplugged) |

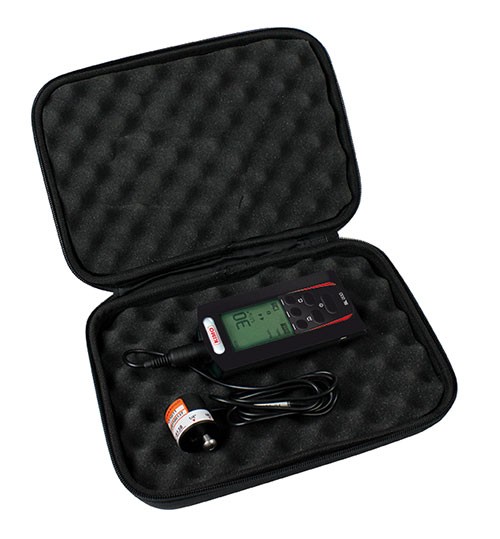

| c. | Complete unit | : | Tripod, |
| : | Solar cell, | ||
| : | Manualbook, | ||
| : | Certificate of calibration | ||
