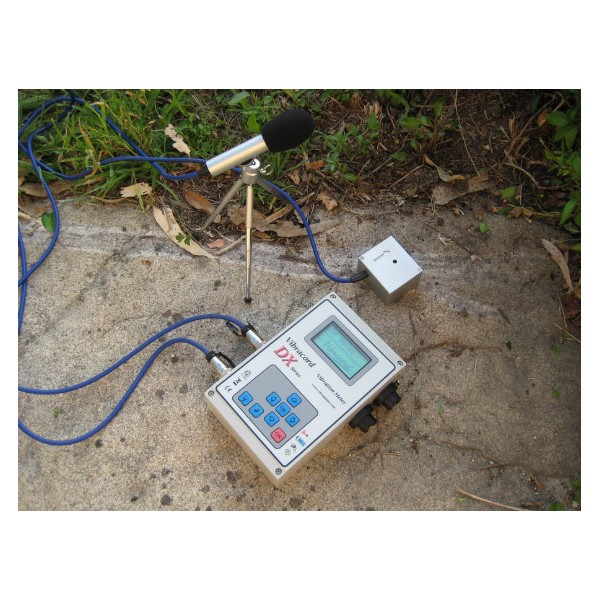

Type : VIBRACORD DX7 SERIES
Blasting Monitor DX7 Series| Portable Vibration Meter atau Getaran Ledakan adalah alat
Blasting Monitor untuk mengetahui berapa besar getaran yang diakibatkan suatu ledakan.
Jual Alat Ukur Getaran dari suatu bahan peledak seperti meledakkan batuan di area tambang atau meledakan bangunan bertingkat..
| Spesifikasi : | |||
| ▪ | Number of Channel | : | 7 channel |
| ▪ | Sample rate | : | 2048 SPS |
| ▪ | Analog to Digital Converter | : | 16 bits |
| ▪ | Frequency range | : | 1 ~ 315 Hz |
| ▪ | Record time | : | 1, 2, 4, 8, 16, 32 s |
| ▪ | Trigger mode | : | Automatic : Manual : External |
| ▪ | Ports for data transfer (OPTIONAL) | : | Ethernet (LAN) |
| : | USB (External disk) : GSM/GPRS | ||
| ▪ | Record and data transfer | : | Internal disk , Printer, SMS |
| messages , WEB server , FTP | |||
| server, e-mail | |||
| ▪ | Data storage memory | : | 200 MB |
| ▪ | External power supply | : | 12V |
| ▪ | Intenal power supply | : | Li-Ion rechargeable battery |
| ▪ | Autonomy | : | 20hours (continuous use) |
| ▪ | Visualization | : | Visualization Graphic LCD |
| : | screen 128x64 pixels | ||
| ▪ | Keyboard | : | 8 keys |
| ▪ | Dimensions | : | 180x220x70 mm |
| ▪ | Weight | : | 1,9 kg (unit only) |
| ▪ | Operating temperature | : | -10 ºC to 50 ºC |
| ▪ | Storage temperature | : | -20 ºC to 60 ºC |
| ▪ | Complete unit | : | Seismographs for blasting |
| : | One microphone for air-wave recording | ||
| : | Analysis program | ||
| : | Two three-axis bloks geophones | ||
| : | Carrying case | ||
| : | Sertificate of Calibration | ||
| : | User Manual | ||
| : | External power supply | ||
| : | 2 (two) spike | ||
| : | Printer Module | ||
| : | Portable external printer | ||
| : | 1-315 Hz Frequency range | ||
