SENSonIC 1400 || ANALISIS GAS KOMBUSI S-1400 || ANALISIS FLY GAS S-1400, ANALISA GAS MADUR SENSonIC 1400.
| Gas Flue Sensonic S1400 Review | |||||||||

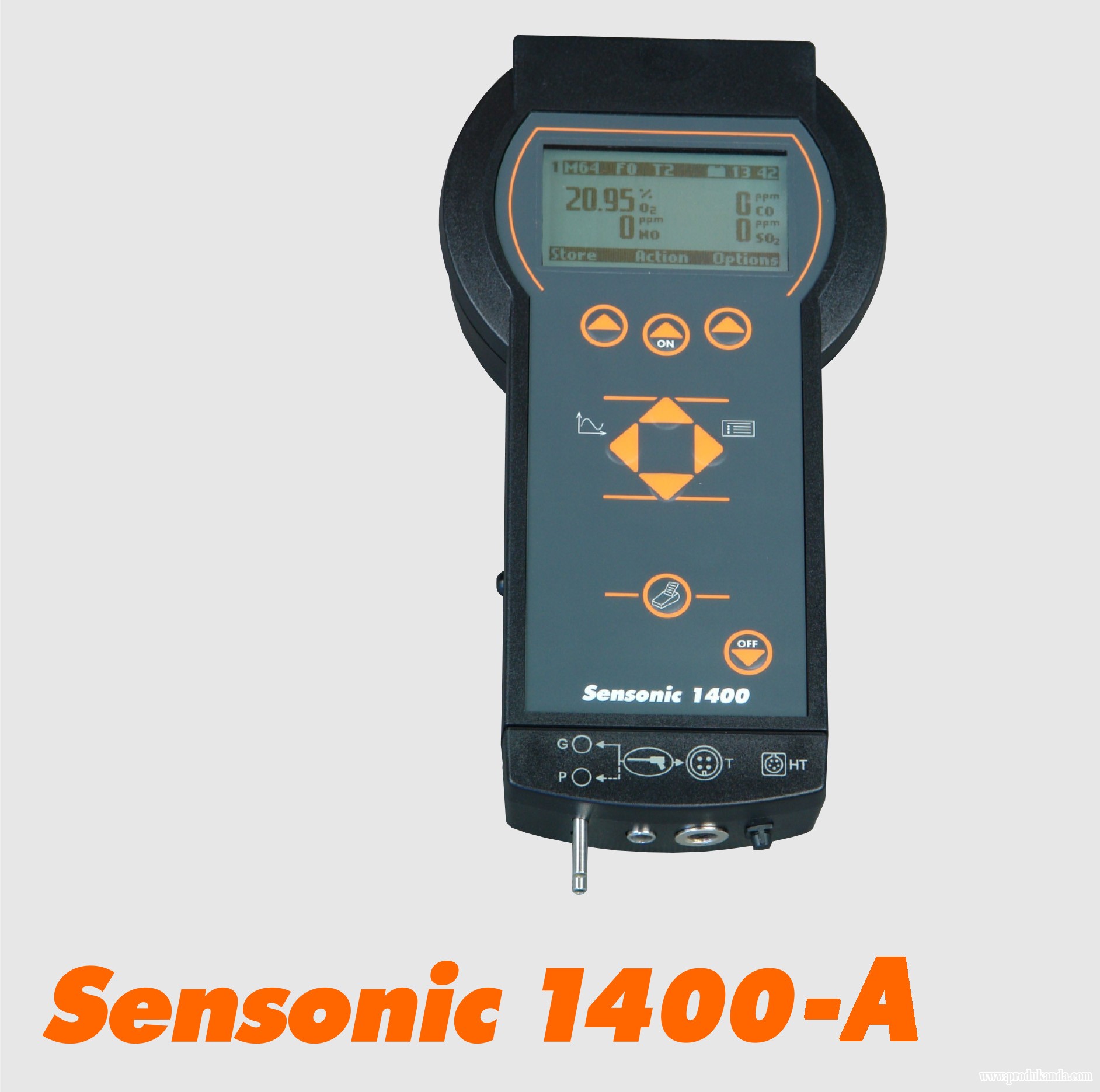

| Model | : SENTonIC 1400-A | ||||||||
| Produk | : SENConIC (POLANDIA) | ||||||||
| A. Pengukuran Komponen Gas | |||||||||
| Parameter Gas Terukur | Sensor | Jarak | Resolusi | Ketepatan | |||||
| 1. | O2 | (Oksigen) | Elektrokimia | 0 ~ 25% | 0,01% | ± 0,1% abs atau 5% rel | |||
| 2. | BERSAMA | ( Karbon monoksida ) | Elektrokimia | 0 ~ 20.000 ppm | 1ppm | ± 10 ppm abs atau 5% rel. | |||
| 3. | TIDAK | (Nitrat Oksida) | Elektrokimia | 0 ~ 2.000 ppm | 0.1ppm | ± 5ppm abs atau 5% rel. | |||
| 4. | NO2 | ( Nitrogen dioksida ) | Elektrokimia | 0 ~ 1.000 ppm | 0.1ppm | ± 5ppm abs atau 5% rel. | |||
| B. Data Teknis | |||||||||
| ▪ | Sensonic 1400 GAS Analyzer | : | VERSI A | ||||||
| ▪ | Dimensi dengan konektor gas | : | 257mm * 130mm * 60mm | ||||||
| (W * H * D) | |||||||||
| ▪ | Weight (without accessories) | : | 615g | ||||||
| ▪ | Casing material | : | ABS case, rubber protective boot (optional) | ||||||
| ▪ | Operating conditions | : | T: 10°C ÷ 50°C RH: 5% ÷ 90% (non-condensing) | ||||||
| ▪ | Storing temperature | : | -20°C ÷ +55°C | ||||||
| ▪ | Power supply | : | Built-in Li-ion rechargeable battery (1600 mAh) | ||||||
| ▪ | Operating time (fully charged battery) | : | Up to 16h | ||||||
| ▪ | Number of gas sensors | : | 3 or 4 | ||||||
| ▪ | Data memory | : | 64 measurement reports | ||||||
| ▪ | Display | : | Graphical LCD 128 * 64 with variable contrast and LED backlighting | ||||||
| ▪ | Printer | : | External thermal IR printer MCP 8850 with charger | ||||||
| ▪ | Gas pump | : | Diaphragm, max 0,6 ÷ 0,9 l/min | ||||||
| ▪ | Communication interface | : | RS-232C to PC computer | ||||||
| ▪ | Gas filtering | : | In-line filter included in the gas probe hose | ||||||

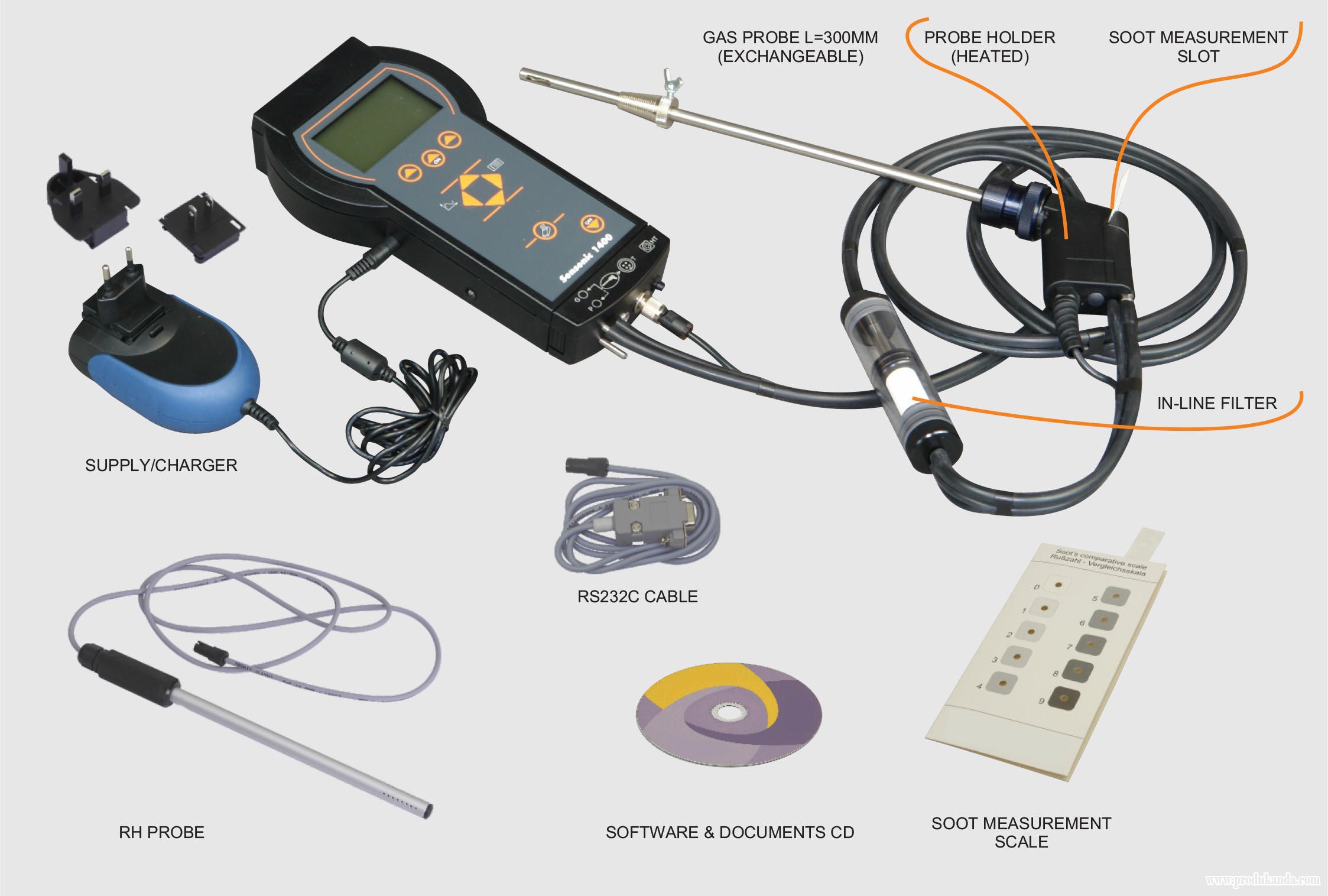

| C. STANDARD EQUIPMENT | |||||||||
| ▪ | Carrying case for analyser and accessories | ||||||||
| ▪ | Power supply (charger) for the built-in Li-ion battery with selected type of mains plug | ||||||||
| ▪ | Skala perbandingan dengan filter kertas untuk tes jelaga | ||||||||
| ▪ | Software CD dengan program dan manual | ||||||||
| ▪ | 2,5m kabel komunikasi RS-232C dengan konektor wanita DB9 | ||||||||
| ▪ | Panjang probe 300mm, 800 ° C | ||||||||
| D. PERALATAN OPTIonAL & SPARE PARTS | |||||||||
| ▪ | Printer portabel & kertas printer | ||||||||
| ▪ | RH dan probe suhu ambien | ||||||||
| ▪ | Sensor suhu sekitar | ||||||||
| ▪ | Kit tekanan | ||||||||
| ▪ | Tabung pitot | ||||||||
| ▪ | Konverter RS232C ke USB | ||||||||
| ▪ | Modul komunikasi Bluetooth | ||||||||
| ▪ | Casing | ||||||||
| ▪ | Pelindung karet | ||||||||
