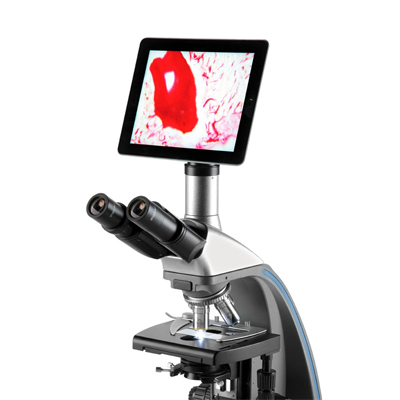

| TRINOCULAR BIOLOGICAL MICROSCOPE | |||
| Model : Solarist-T | |||
| Brand : BEL-Engineering (Italy). | |||
| Spesifikasi Alat : | |||
| ▪ | Application | : Research, Laboratory use and Medical field operations | |
| ▪ | Optical System | : Infinity Corrected optics system | |
| ▪ | Illumination | : Built in transmitted Koehler illumination with field | |
| diaphragm 6V 30W Halogen bulb | |||
| ▪ | Eyepieces | : Extra Wide field WF10x/22 mm | |
| ▪ | Objectives | : PLAN ACHROMATIC 4x/0.1; 10x/0.25; 40x/0.65; | |
| 100x/1.25 (oil immersion) | |||
| ▪ | Focusing | : Macrometric and micrometric coaxial knobs on both | |
| sides (0,002mm) | |||
| ▪ | Observation tube | : Binocular /Trinocular | |
| : Tube inclination 30° tilted, 360° rotable | |||
| : Interpupillary distance adjustment 55-75mm | |||
| : Light path sensor (trinocular 100%-0% or 0%-100% | |||
| ▪ | Stage | : 193 x 155mm. Excrution XY: 75X50mm (division 0,1mm) | |
| : Coaxial knobs on right side | |||
| ▪ | Condenser | : Abbe condenser, N.A 1.25. Equipped with diaphram and | |
| and filter seat. Height and centering are adjustable | |||
| ▪ | Accessories | : Protection Cover | |
| : Oil Bottle | |||
| : Certificate of origin for Chamber of Commerce | |||
| : Manual Book | |||
