Getaran Ledakan adalah alat ukur getaran dari suatu ledakan dengan 7 channel, Frequency 2-250Hz, alat mampu merekam data dan tersimpan dalam memory..

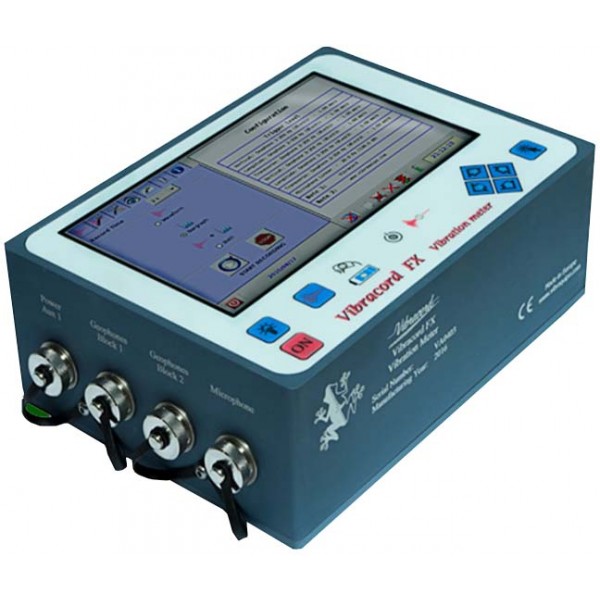

Vibration Meter / Blasting Monitor
Type : Vibracord FX-7 channel
| Spesifikasi : | |||
| ▪ | Number of channels | : | Two 3-Axis block of geophones and one |
| low frequency microphone | |||
| ▪ | Sample rate | : | 2048 sampler per second |
| ▪ | Frequency response | : | 2-250 Hz (ISEE) |
| : | 1-315 Hz (DIN 45669-1) | ||
| ▪ | Trigger modes | : | Automatic |
| ▪ | FFT Calculation | : | Equipment and computer |
| ▪ | Data transfer modes | : | USB Disk, SD Card, USB Cable, WEB Server, |
| FTP Server | |||
| ▪ | Data Visualization | : | Screen, Printer, Web Server, FTP Server |
| ▪ | Screen | : | 7" TFT color 800 x 480 pixels |
| ▪ | Keyboard | : | 8 keys |
| ▪ | Data storage memory | : | 1,8 GiB, up to 10.000 record |
| ▪ | Internal power supply | : | Li-Ion rechargeable battery |
| ▪ | Dimension (mm) | : | 200 x 150 x 70mm (aluminium case) |
| ▪ | Environmental | : | IP-54 |
