Stasiun cuaca adalah seperangkat alat atau instrumen yang digunakan untuk mengamati kondisi atau perubahan cuaca,
iklim dan atmosfer di suatu wilayah dan merekamnya kedalam bentuk data. Setelah direkam,
data tersebut disimpan kedalam data logger dan selanjutnya untuk dipelajari oleh pengguna atau peneliti.

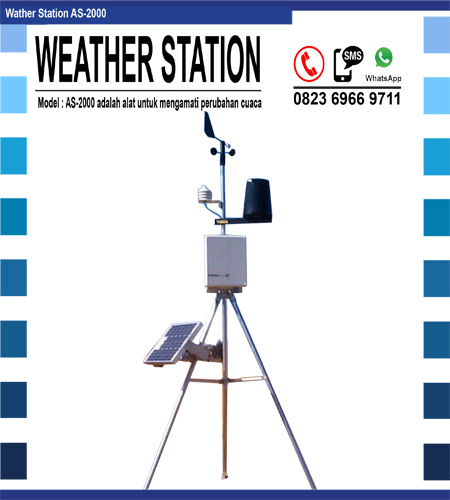

| Weather Station | |||
| Model : AS-2000 | |||
| Merek : EDC (USA) | |||
| Spesifikasi alat : | |||
| ▪ | Data Acquisition Module | : | Reporting Unit , english or meteric |
| Operating power 10-16 VDC | |||
| Power consumption 60 mA Max. | |||
| Serial port 9 pin d-sub connector | |||
| Memory, 128 KB RAM | |||
| ▪ | Operating Temp | : | Tranducer, -40 to 60 ˚C |
| ▪ | Timekeeping | : | Format: MM/DD and HH:MM |
| : | Accuracy : ± 30 second/month | ||
| ▪ | Barometeric Pressure | : | Range: 28.25 to 30.75 inches Hg |
| : | Measurement span : 2.50 inches Hg | ||
| : | Resolution: ±0.01 inch Hg or ± 0.3 hpa | ||
| : | Altitude offset : 0 to 10.000 feet | ||
| : | Absolute Accuracy : 0.05 inches Hg | ||
| ▪ | Wind Speed | : | Range : 0 to 125 mph (0-57 m/s) |
| : | Resolution : >0.1 mph | ||
| : | Accuracy : ± 1mph | ||
| : | Starting threshold : 0.8 mph | ||
| ▪ | Wind Direction | : | Range : 0-360 ˚ |
| : | Resolution : >1% | ||
| : | Accuracy : ± 1 ˚F | ||
| ▪ | Relative Humidity | : | Range : 0-100% RH |
| : | Accuracy : ± 3% (10-90%) | ||
| ▪ | Air Temperature | : | -40 to 60 ˚C |
| ▪ | Rain Gauge | : | Max Rate Unlimited |
| : | Tip 0,254mm of rain fall | ||
